Barrel Chain | Drum Grab Chain

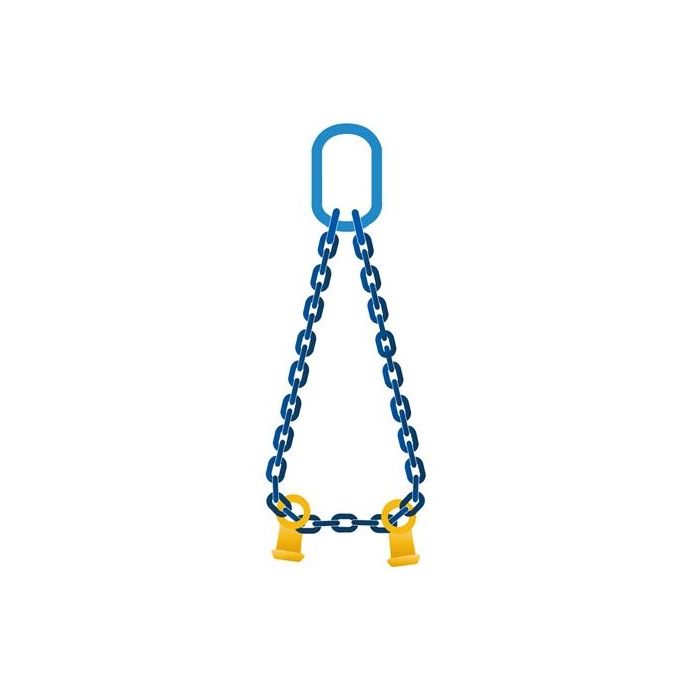

We have this drum grab available in 2 tonnages, namely with a working load of 1 ton and a 2 ton. The assembly is intended to lift drums horizontally. Due to the tension that is put on the chain during hoisting, it pulls the hooks together.

The barrel chain has Mitari's barrel hooks; versatile, perfectly designed, timeless and tough as nails. Given the design and how universal and timeless they are, they can be used for various applications.

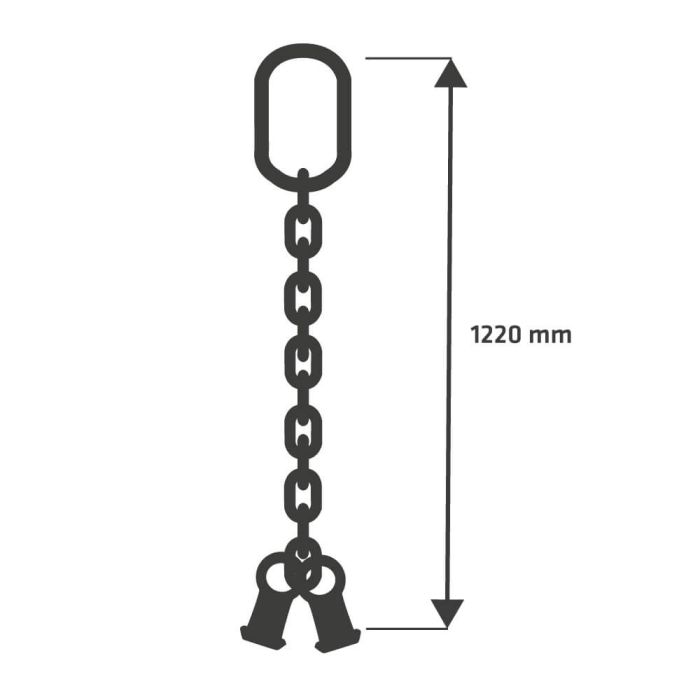

The barrel chain has a standard length of 1.22 meters. The length is measured when the chain is not in use.

• Type: MVH
• Length at rest: 1.22 meters
• WLL: 1,000 to 2,000 kg
• Brand:  Mitari
• Material: Grade 80 / 100
• Safety factor:  4:1
• Finish: Painted blue and yellow
• Standard:  NEN-EN 818-1 to 7 & NEN-EN 1677-1,-2,-3 and -5
