Bow Shackle | Screw Collar Pin | Grade 60 | WLL: 1.00 to 12.00 Ton

Bow Shackle | Screw Collar Pin | Grade 60 | WLL: 1.00 to 12.00 Ton

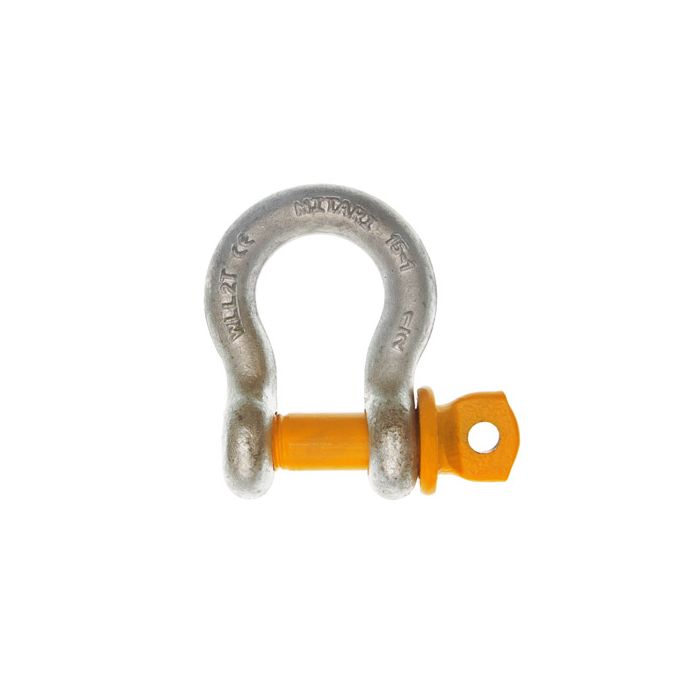

Our Mitari bow shackle with screw collar pin is great for temporary anchoring tasks. While easy to use, it's important to tighten the pin further with a wrench to prevent loosening during use, caused by vibration, lifting equipment, or friction. Our orange pin shackle is a budget-friendly alternative to Green Pin, with versatile bow design and safe working loads up to 12 tons and internal bow diameters up to 83 mm. It can carry a load at an angle, while dee shackles on our website are better for straight loading applications.

  • Type: HBB
  • Bolt: Screw Collar Pin
  • Brand: Mitari
  • Material: High quality steel, Grade 60
  • WLL: 1.00 to 12.00 Ton
  • Pin diameter: 11 to 35 mm
  • Safety factor: 6:1
  • Finish: Galvanized
  • Temperature range: -20°C tot 200°C
  • Norm: NEN-EN13889
