Lifting Chain | 4 Crossroads | MFX | Grade 100

If you're in need of a four-legged chain for a lifting job, look no further than our selection of chain assemblies, which includes the MFX chain 4 crossroads. This chain assembly features four (chain) legs, with a top link on one end and a hook of your choosing on the other.

With the 4-leg MFX, the shortening hooks are affixed to the top link, with the chains mounted directly below them. This means there are no loose shortening hooks to worry about, as they always hang neatly above the chain. The design also makes the chain easier to use, as the shortening hook is always free-hanging. Additionally, this results in fewer parts used on the chain, which naturally translates to fewer wear parts.

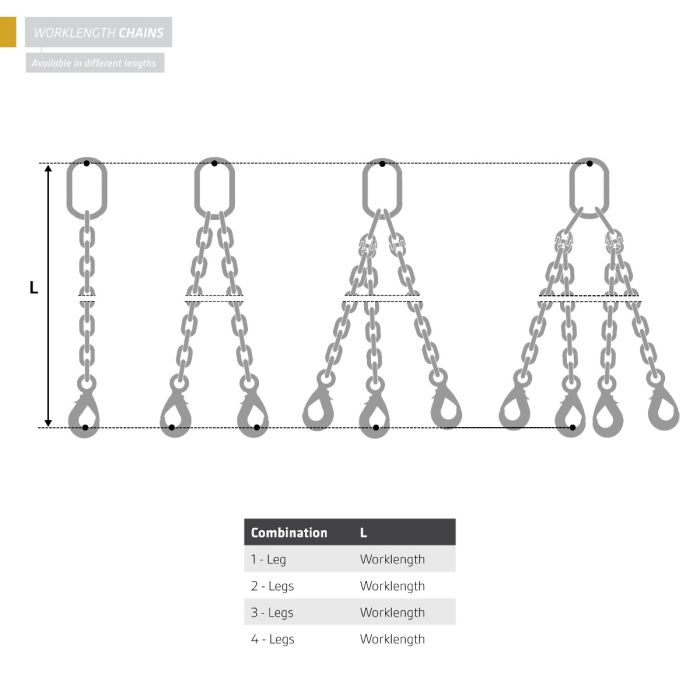

The working length of the MFX chain 4 crossroads is measured from the inside of the top link to the inside of the hook, and this length corresponds to the working length of the entire chain assembly.

• Type:  MFX Four Jump
• Working length:  1 to 8.5 meters

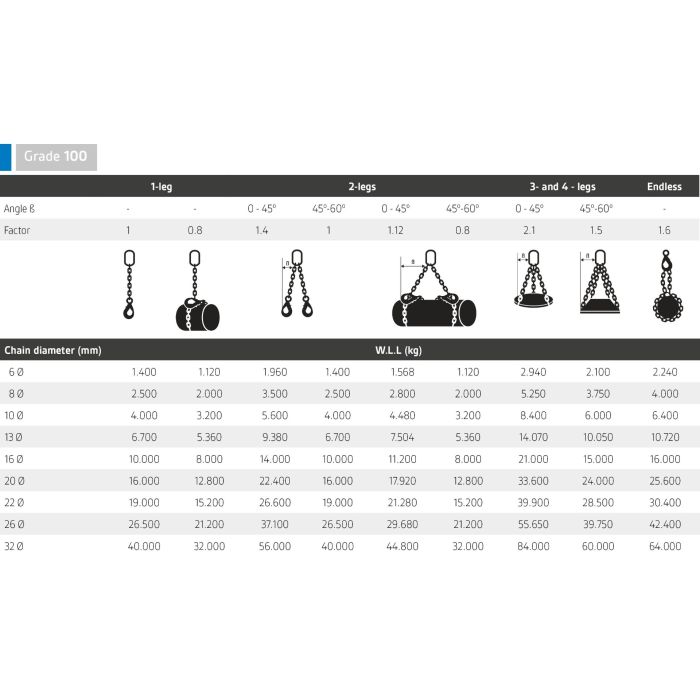

• WLL: 2,100 to 10,050 kg
• Hooks: Flap Hook (MYM), Safety Hook (MYD), Grip Latch Hook (MGL)
• Brand:  Mitari
• Material:  Grade 100
• Safety factor:  4:1
• Finish:  Painted Blue
• Standard:  NEN-EN 818-1 to 7 & NEN-EN 1677-1,-2,-3 and -5
