MR2 Motorized Trolley
MR2 Motorized Trolley

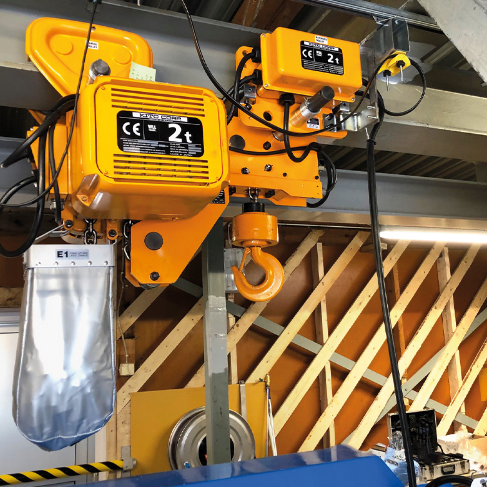

Wherever loads need to be transported safely and precisely, the KITO MR2 motor chassis is the ideal choice. In combination with the ER2 electric chain hoist, the result is a perfect symbiosis for all lifting and travel applications. The KITO MR2 motor trolleys are suitable for all common beam types (flat or conical beam types) up to 300 mm wide.
Usage
Load capacity : 125 kg to 5,000 kg
Contactor control : One driving speed
Electronic thermal relay : Two driving speeds
Operating voltage : 400 V / 50 Hz *other voltages on request
Particularly robust motor : Cooling fins and standard overheating protection, single-phase or three-phase
Ball bearing : Maintenance-free and sealed on the side guide rollers of the chassis
Sealed housing : For indoor and outdoor applications (IP55)
Environmental conditions :-20 ˚C to +40 ˚C
Humidity : 85 % or less
