Swivel Hook Assembly | Flap Hook | Stainless Steel

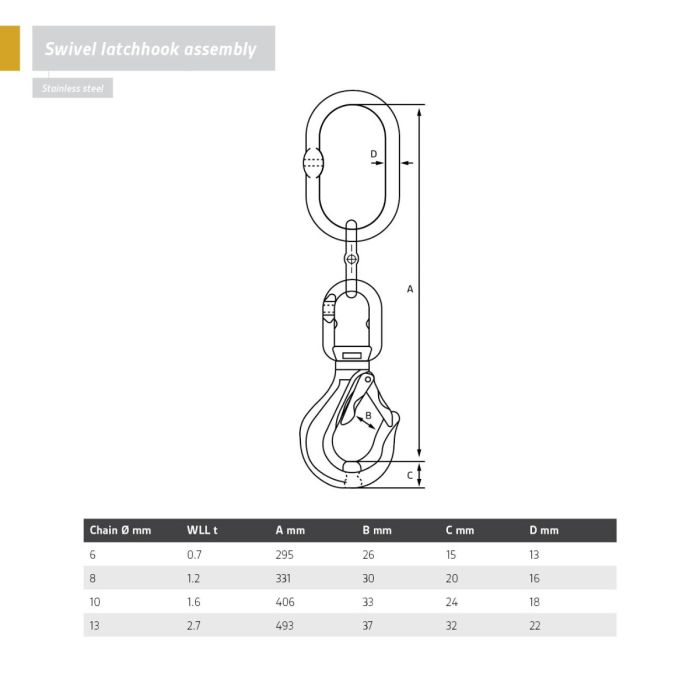

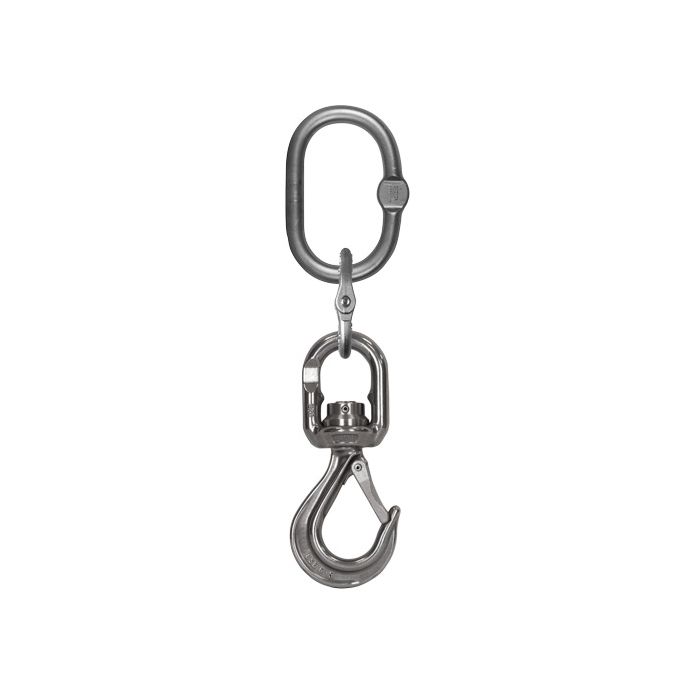

Looking for a stainless steel swivel hook with an extra large hook ring? In addition to our standard swivel hooks, we also have these assemblies in our range. There is a great demand for a swivel hook with an extra large ring at the top. With a top link at the top, the assembly can easily be hung in a crane hook. To create an extra-large attachment point, we attach a top link to the swivel hook by placing a connecting link in between.

The top link, connecting link and swivel hook are made of stainless steel, this is clearly indicated on the parts. Manufactured from Grade 50 stainless steel which offers excellent levels of resistance. Perfect for use in the offshore, marine, gas and oil, food and automotive industries. Available in various tonnages.

Choose from a wide range of sizes, from 700 kg - 2,700 kg.  This swivel flap hook is most commonly used because it is easy to pick up a load through the flap. As soon as the hook is properly mounted, the cover closes automatically by a spring. Make sure that the valve is closed properly before lifting.

• Type: WHS
• Connection:  Eye
• Brand: Green pin
• Material: Stainless steel, AISI 316L, Grade 5
• WLL: 700 to 2,700 kg
• Safety factor: 4:1
• Finish: Polished
• Standard: NEN-EN 818-1 to 7 & NEN-EN 1677-1,-2,-3 and -5
