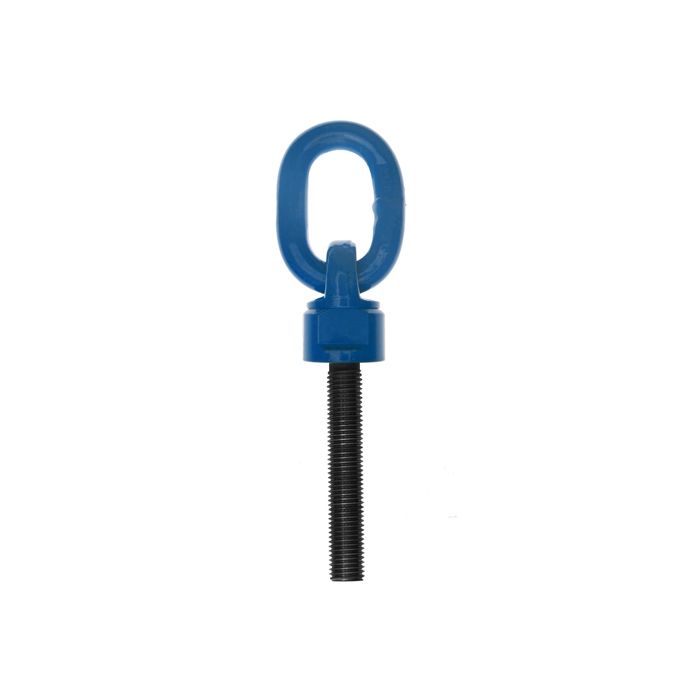

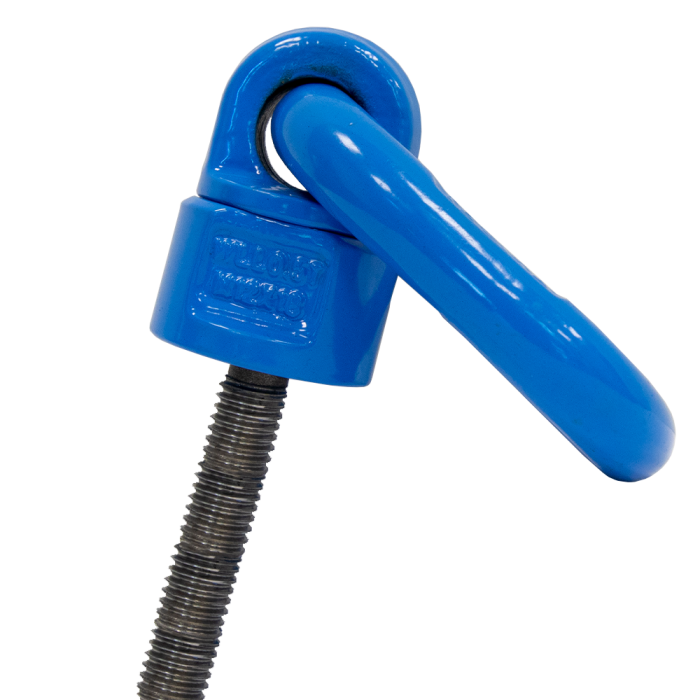

Tilt & Swivel Lifting Eye | Ball Bearing | Long Bolt

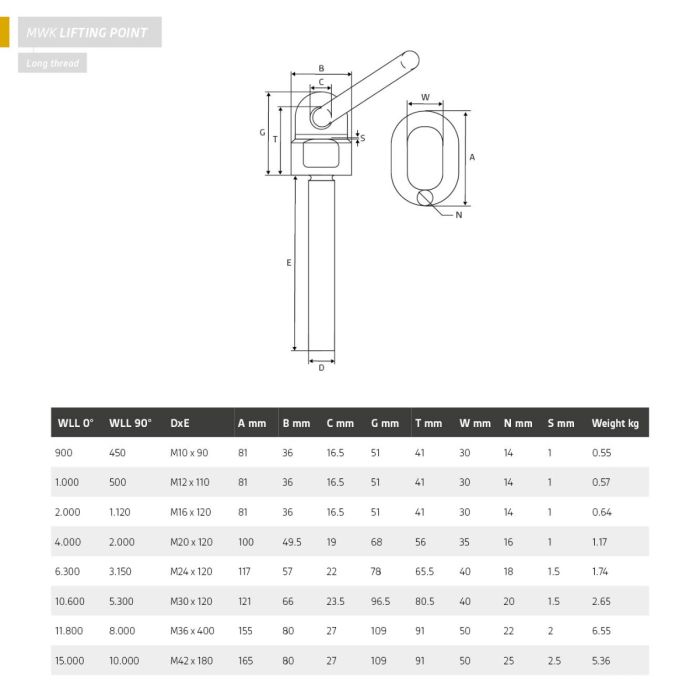

The Mitari brand's MWK lifting eye can tilt 180° and rotate 360°, making it easy to position for optimal lifting directions. The MWK has ball bearings, allowing it to rotate under load smoothly. The MWK-LB has a longer bolt compared to the MWK. The lifting eye is available in various metric threads with safe working loads ranging from 1 ton to 15 tons, and technical details and dimensions are provided on the product sheet. Machine style eye bolts are the most popular, and they can be screwed into a pre-tapped hole or fitted through a drilled hole with a nut on the end. It is important to screw the lifting eye fully into the surface and ensure that the surface is strong enough.

• Type: MWK
• Thread: Metric
• Brand: Mitari
• Material: High quality alloy steel
• WLL: 1000 to 15000 Kg
• Size: M8 to M64
• Finish: Painted Blue
• Safety factor: 4:1
• Standard: NEN-EN 818-1
