Tilt & Swivel Lifting Eye | High Quality Alloy Steel

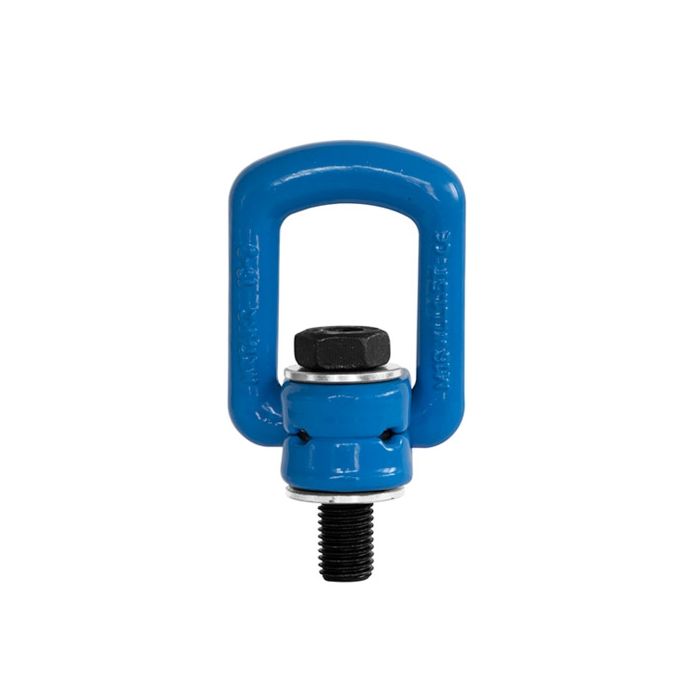

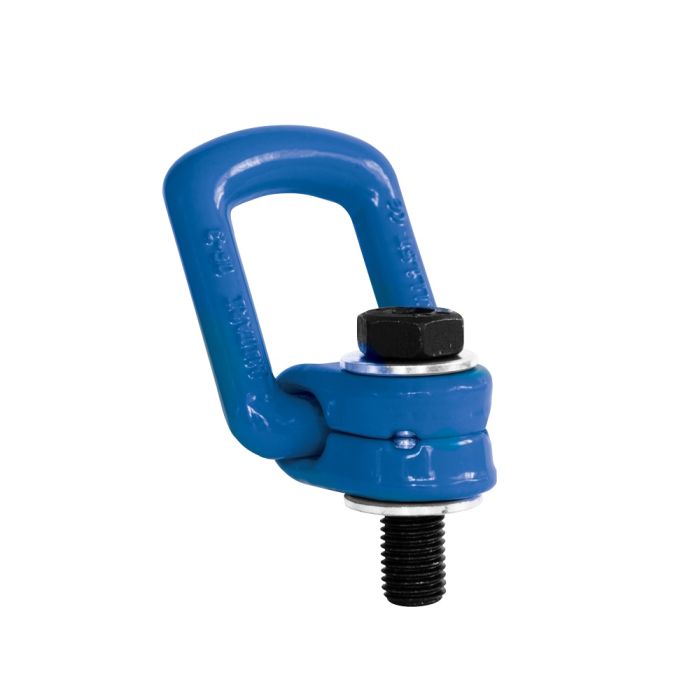

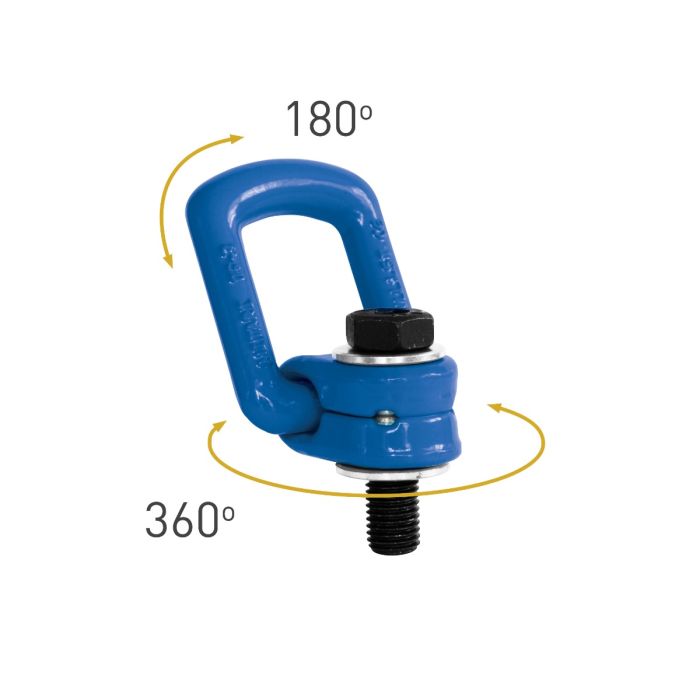

The Mitari brand's LPM lifting eye is a versatile product that can tilt 180° and rotate 360° around its own axis for optimal lifting directions. It is available in various metric threads and safe working loads ranging from 0.3 ton to 20 ton. However, it is important to note that it is not suitable for running under load. Machine style eye bolts are the most popular eye bolts and are designed to be screwed into a pre-tapped hole or drilled hole with a nut fitted onto the end of the threaded bolt. It is important to fully screw in the lifting eye to ensure proper attachment and ensure that the surface is strong enough.

• Type: LPM
• Thread: Metric
• Brand: Mitari
• Material: High quality alloy steel
• WLL: 300 to 20000 Kg
• Size: M8 to M48
• Finish: Painted blue
• Safety factor: 4:1
• Norm: NEN-EN 818-1
